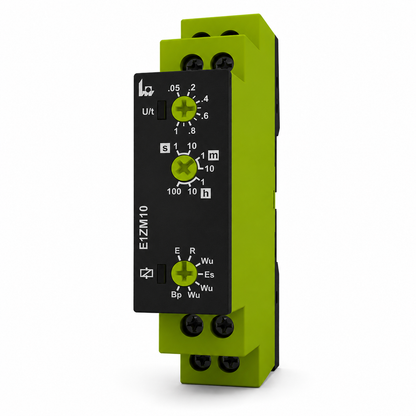

Multifunction Time Relay E1ZM10 24–240V AC/DC – universal time relay with 7 functions
The E1ZM10 24–240V AC/DC from TELE is a versatile multifunction time relay from the ENYA series for industrial control, switching, and automation tasks. With seven integrated time functions and seven time ranges, the device covers a wide variety of time-dependent applications while reducing inventory costs due to its broad supply voltage range of 24 to 240V AC/DC.
Available functions include on-delay, off-delay, on-delay with control input, pulse relay on leading or trailing edge, voltage-controlled on-wipers, and a flasher relay with pause start. The time ranges extend from 50 milliseconds to 100 hours, allowing precise adaptation to diverse applications.
The time relay features a potential-free changeover contact with a switching capacity of up to 8A at 250V AC. Two LED indicators provide information on supply voltage, time sequence, and switching status, facilitating commissioning and fault diagnosis.

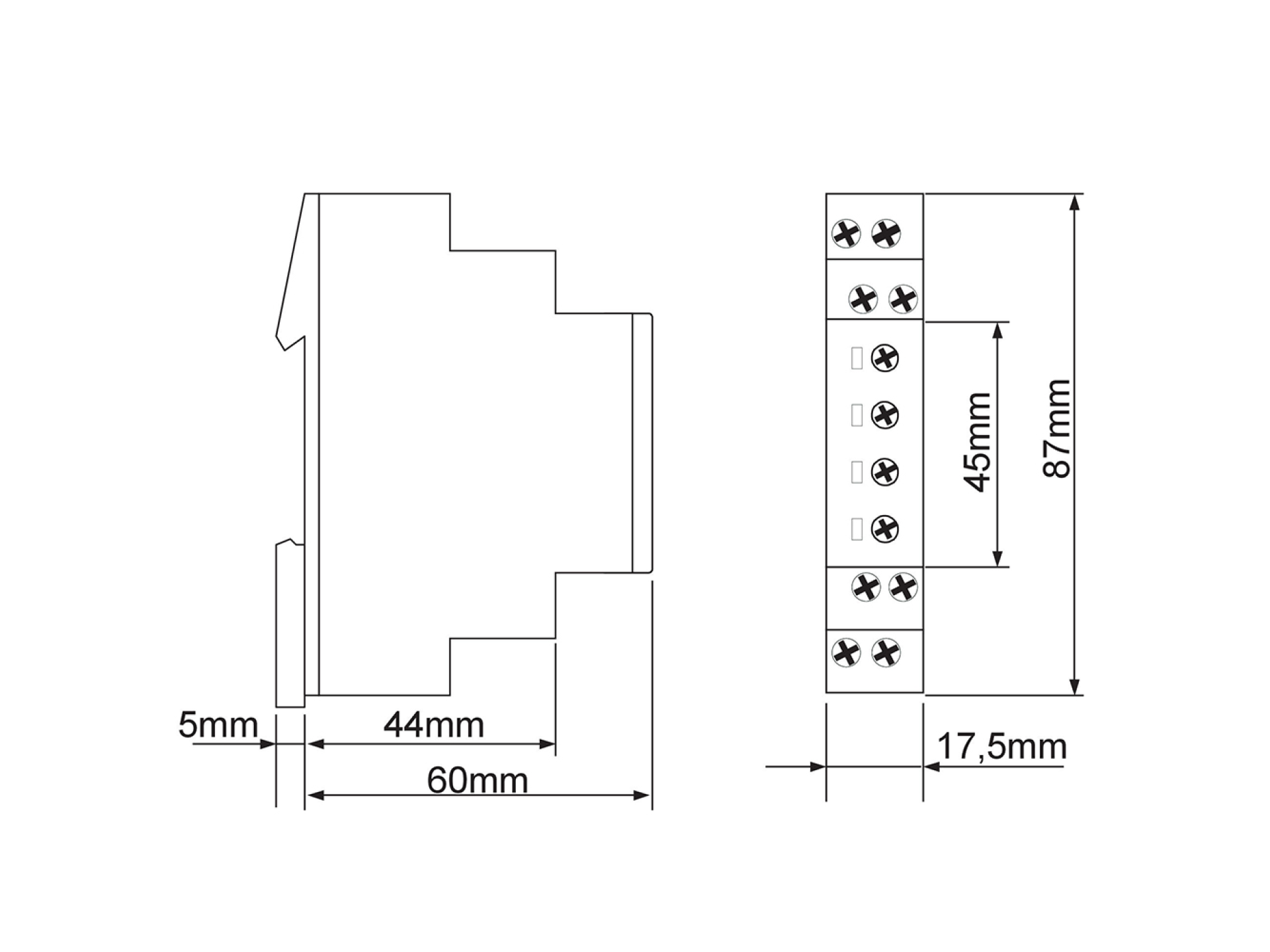

Thanks to its compact width of only 17.5 mm, the device is ideal for space-saving mounting on DIN rails in control cabinets, machine controls, and industrial automation systems.
Your advantages at a glance
- Supply voltage 24–240V AC/DC
- 7 integrated time functions
- Time range from 50 ms to 100 h
- 1 changeover contact (1 CO)
- Switching current up to 8A
- On-delay and off-delay
- Pulse and flasher functions

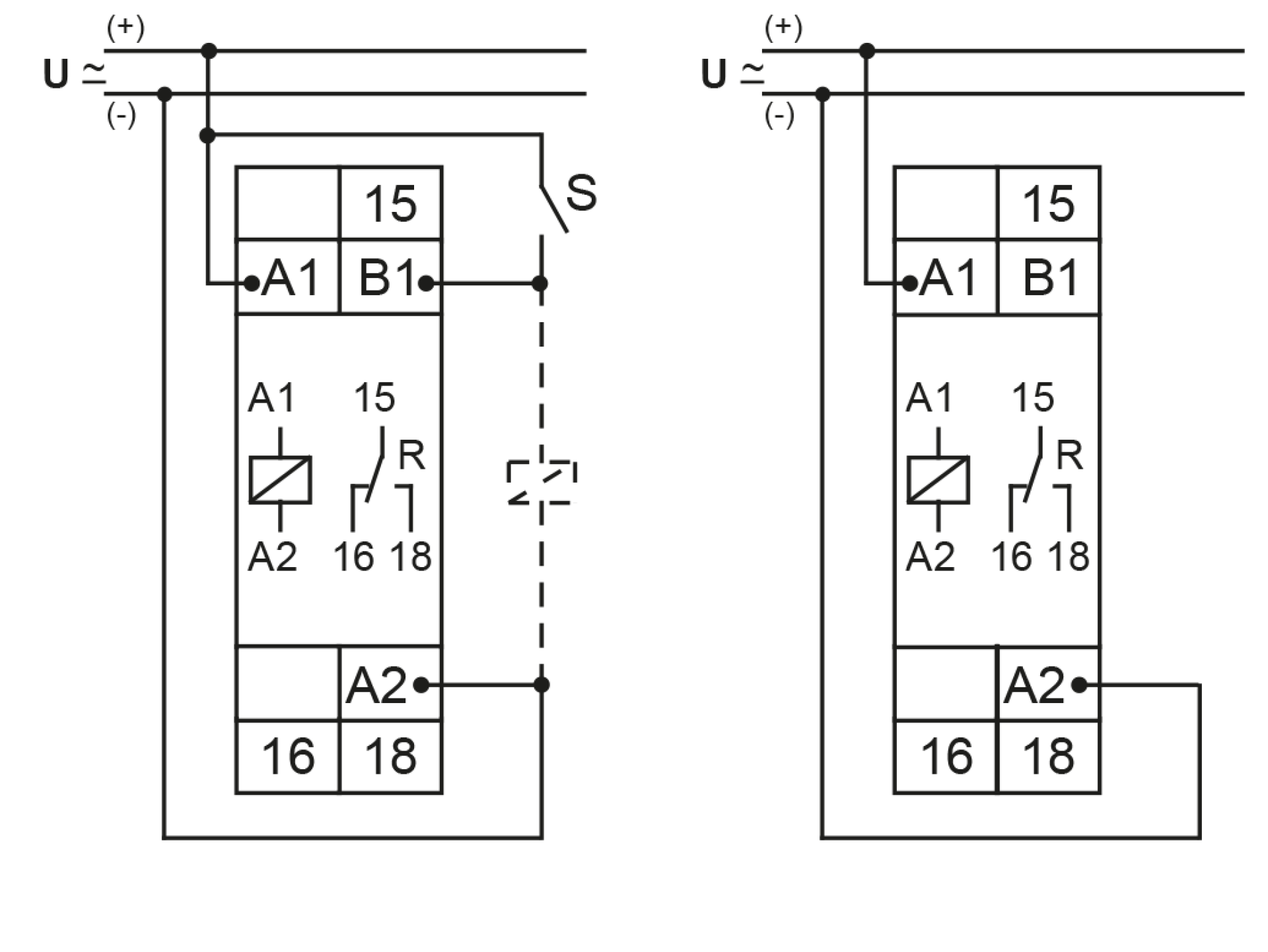

- Control input for external control
- LED indicators for supply and output
- Compact width of 17.5 mm

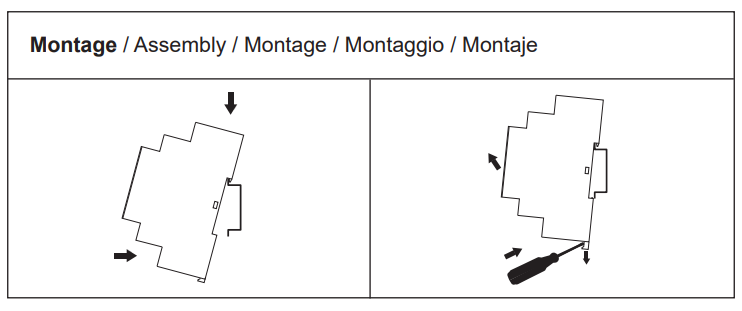

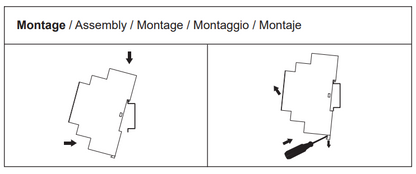

- DIN rail mounting
Typical applications
- Control cabinet manufacturing
- Machine and plant engineering
- Industrial automation
- Conveyor technology
- Process control
- Building automation
- Signal and switching applications
- Time-dependent controls
